FireFX Atlas Wood-Burning Stoves

The FireFX Atlas Wood-Burning Stoves range combines contemporary Scandinavian-inspired styling with practical heating performance. Its tall cylindrical designs, curved viewing glass and clean architectural lines make the Atlas range a striking feature in modern living spaces.

Available in three models, the Atlas 1, Atlas 2 and Atlas 3 offer a choice of height and flame presentation to suit different rooms and fireplace designs. Each combines robust steel and cast-iron construction with modern combustion technology.

At Embers Heating Studio in Derby, we can help you compare the Atlas range and discuss which model is suitable for your home and installation requirements.

Atlas Wood-Burning Stoves: Compare the 3 Models

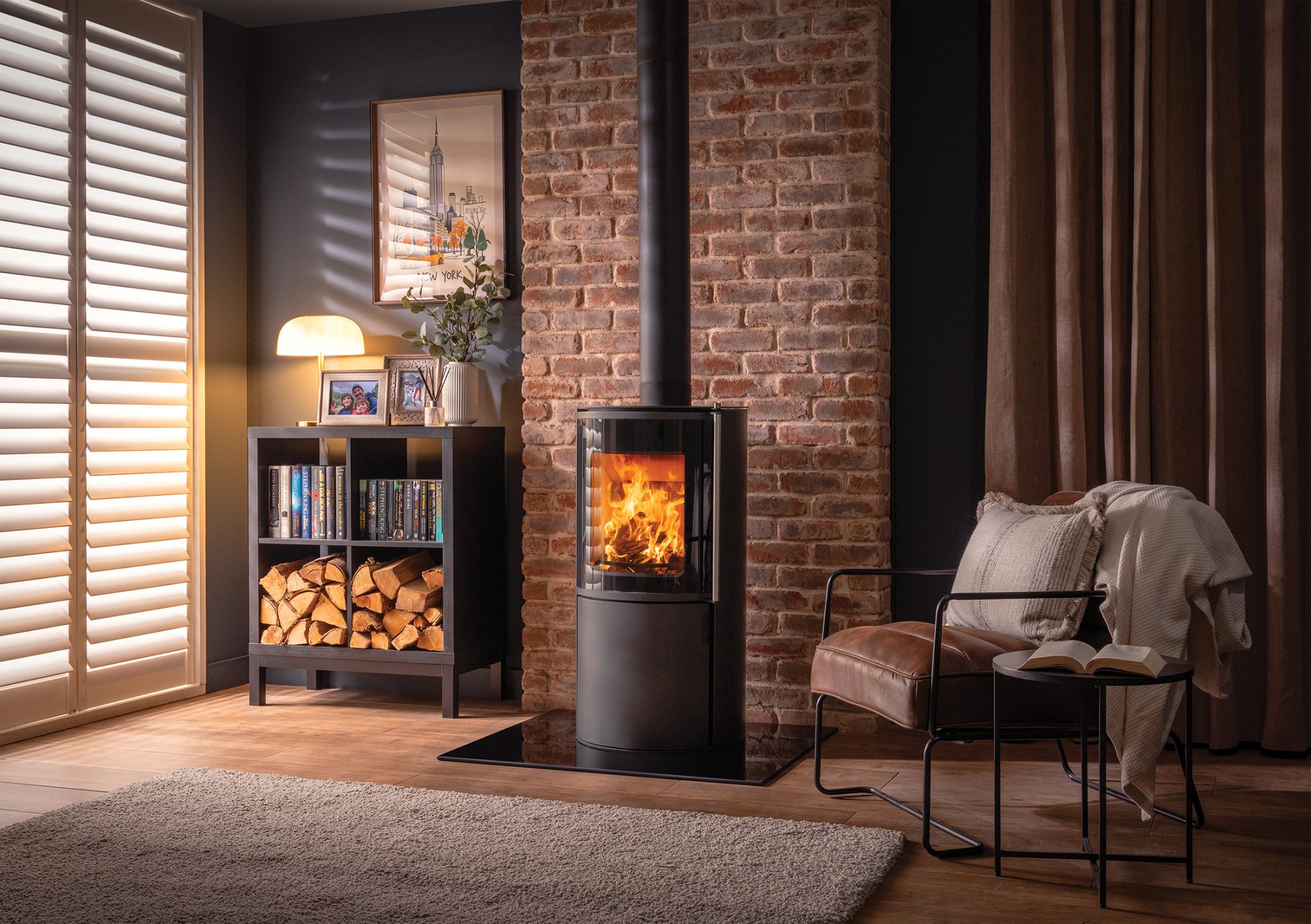

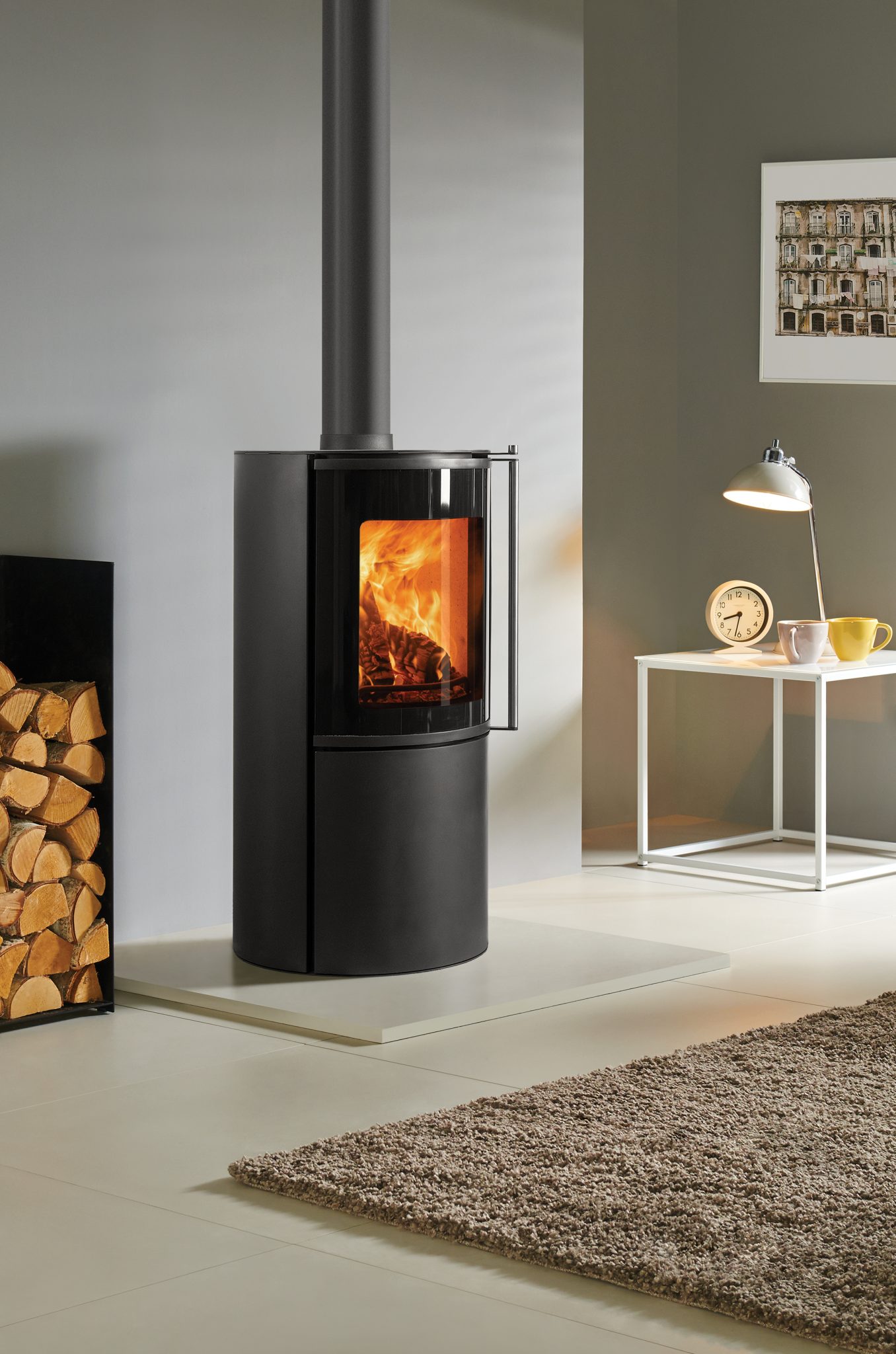

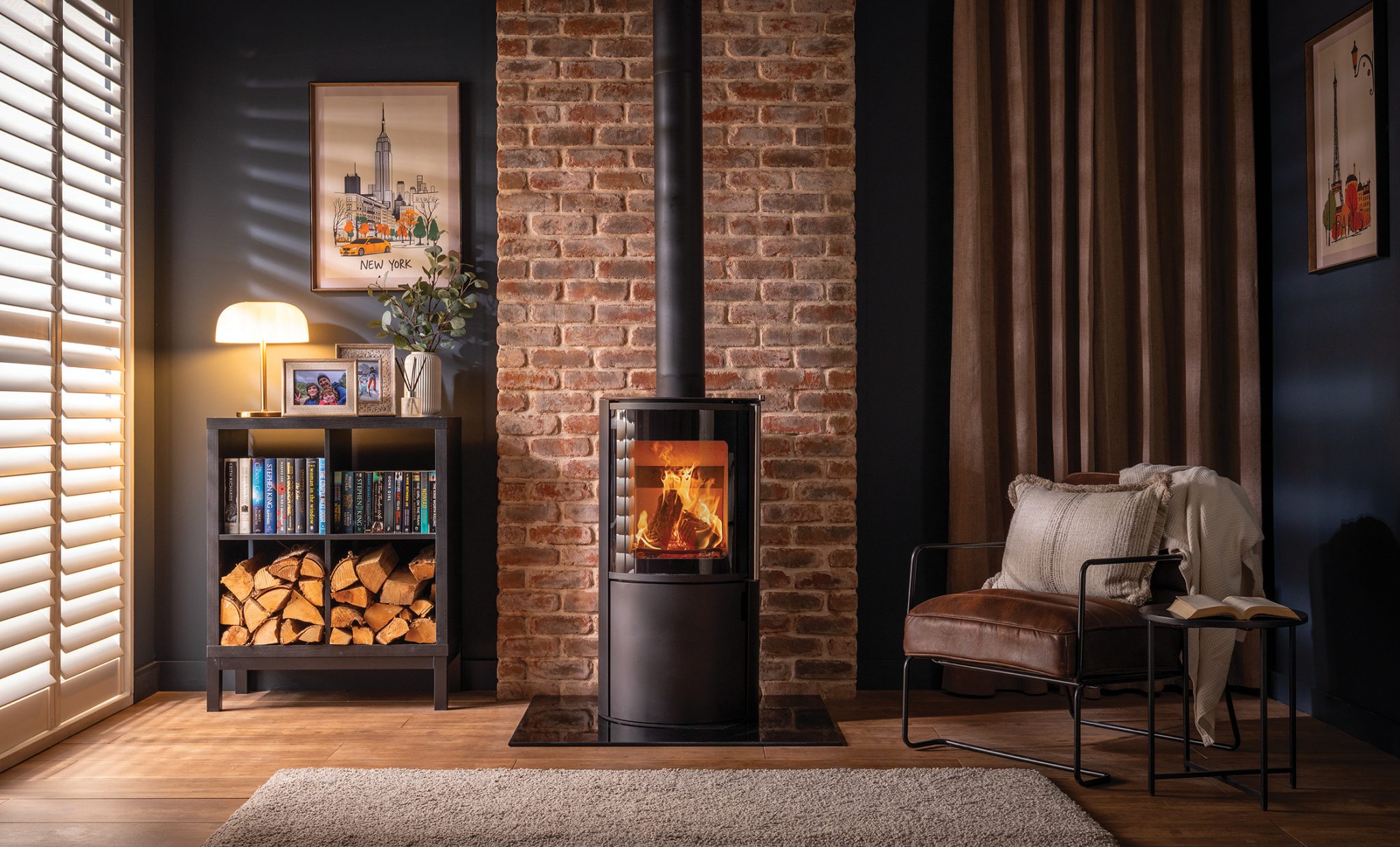

FireFX Atlas 1

The Atlas 1 is the most compact model in the range, with a curved front viewing window and a clean cylindrical design.

• Nominal heat output: 5 kW.
• Published efficiency: 81%.
• Dimensions: approximately 984 mm high × 510 mm wide × 450 mm deep.

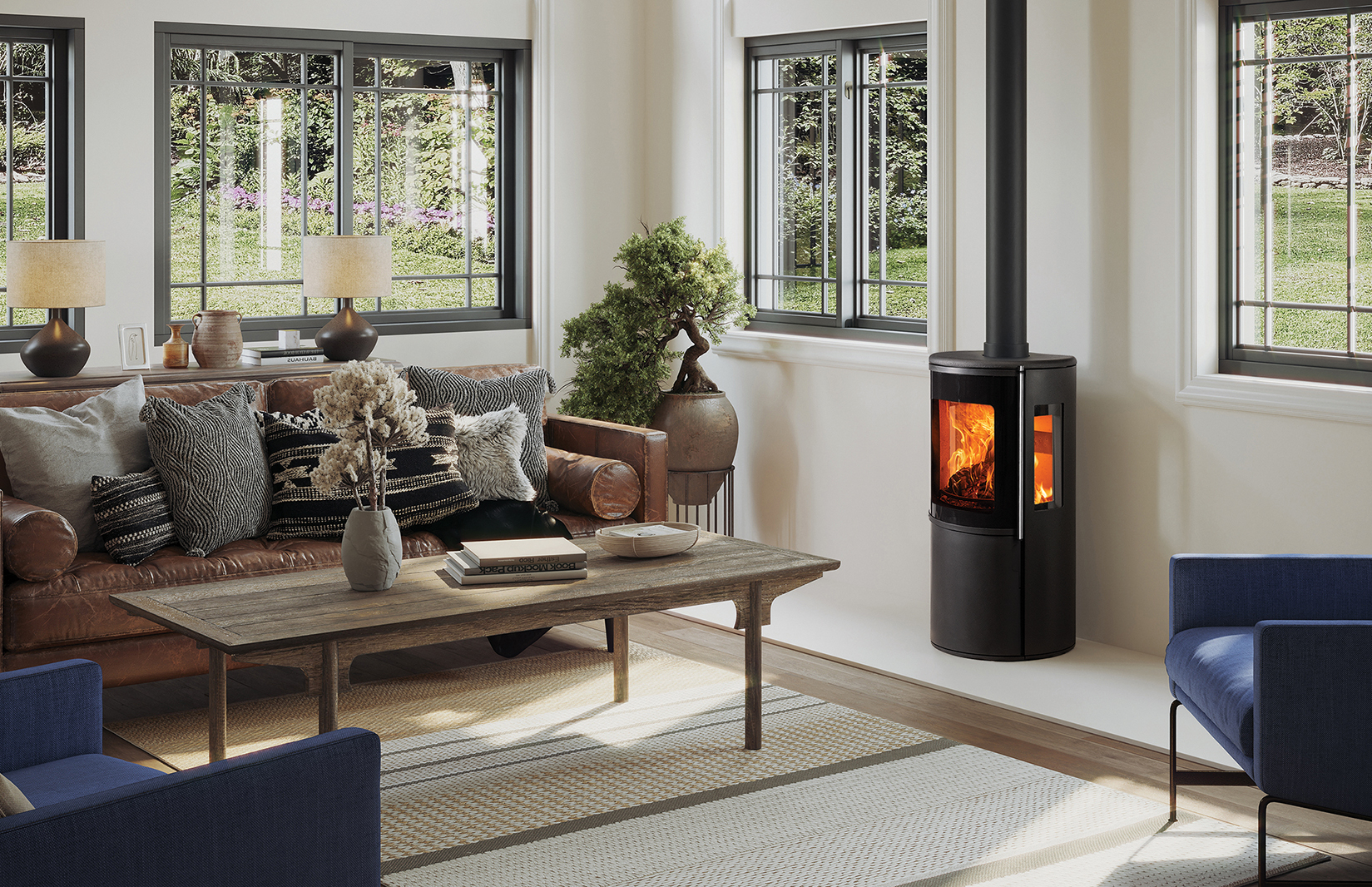

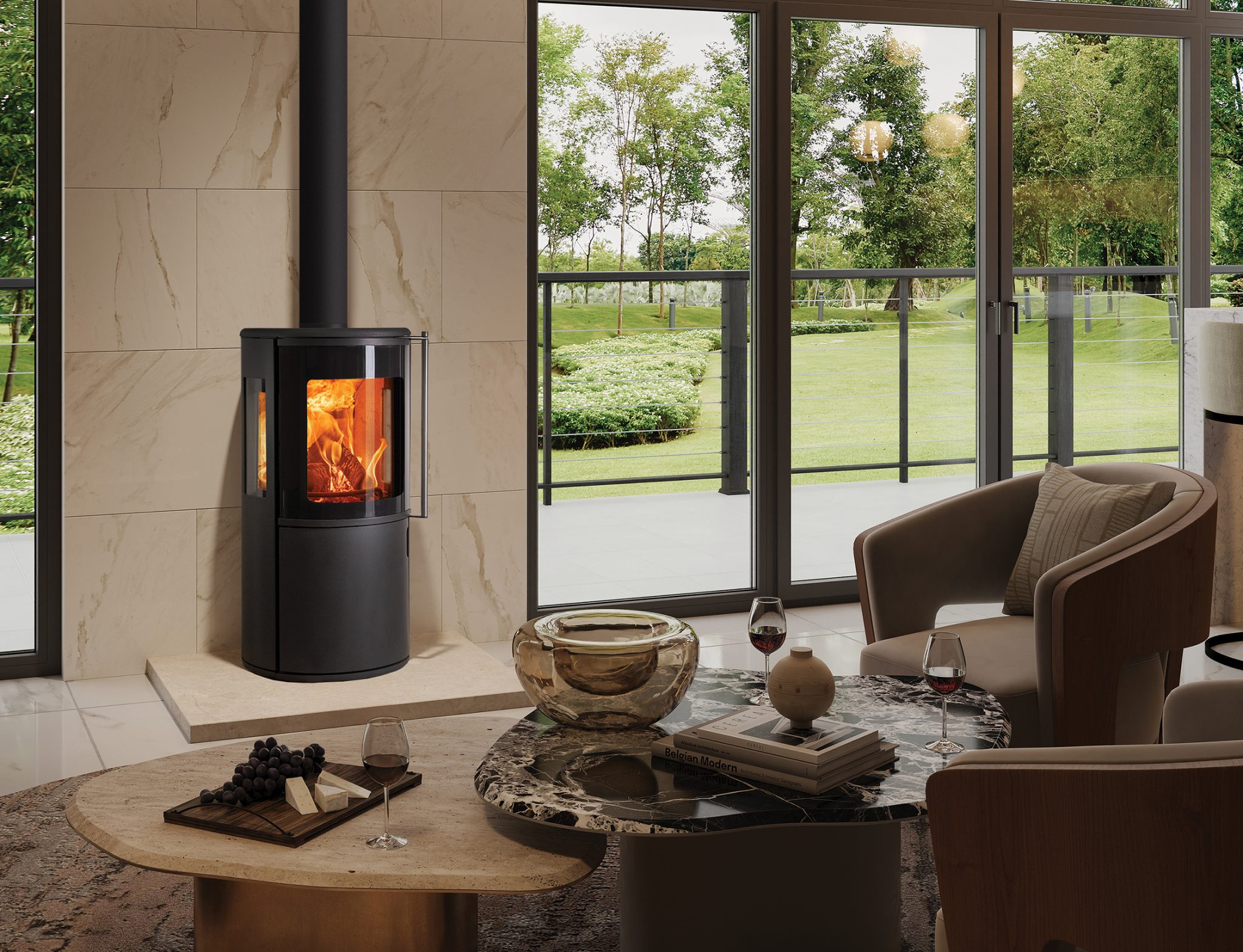

FireFX Atlas 2

The Atlas 2 offers a taller design with additional side glass for a more panoramic flame display.

• Nominal heat output: 6.2 kW.
• Published efficiency: 82%.
• Dimensions: approximately 1,019 mm high × 510 mm wide × 450 mm deep.
• Tall side windows provide an approximately 180-degree view of the flames.

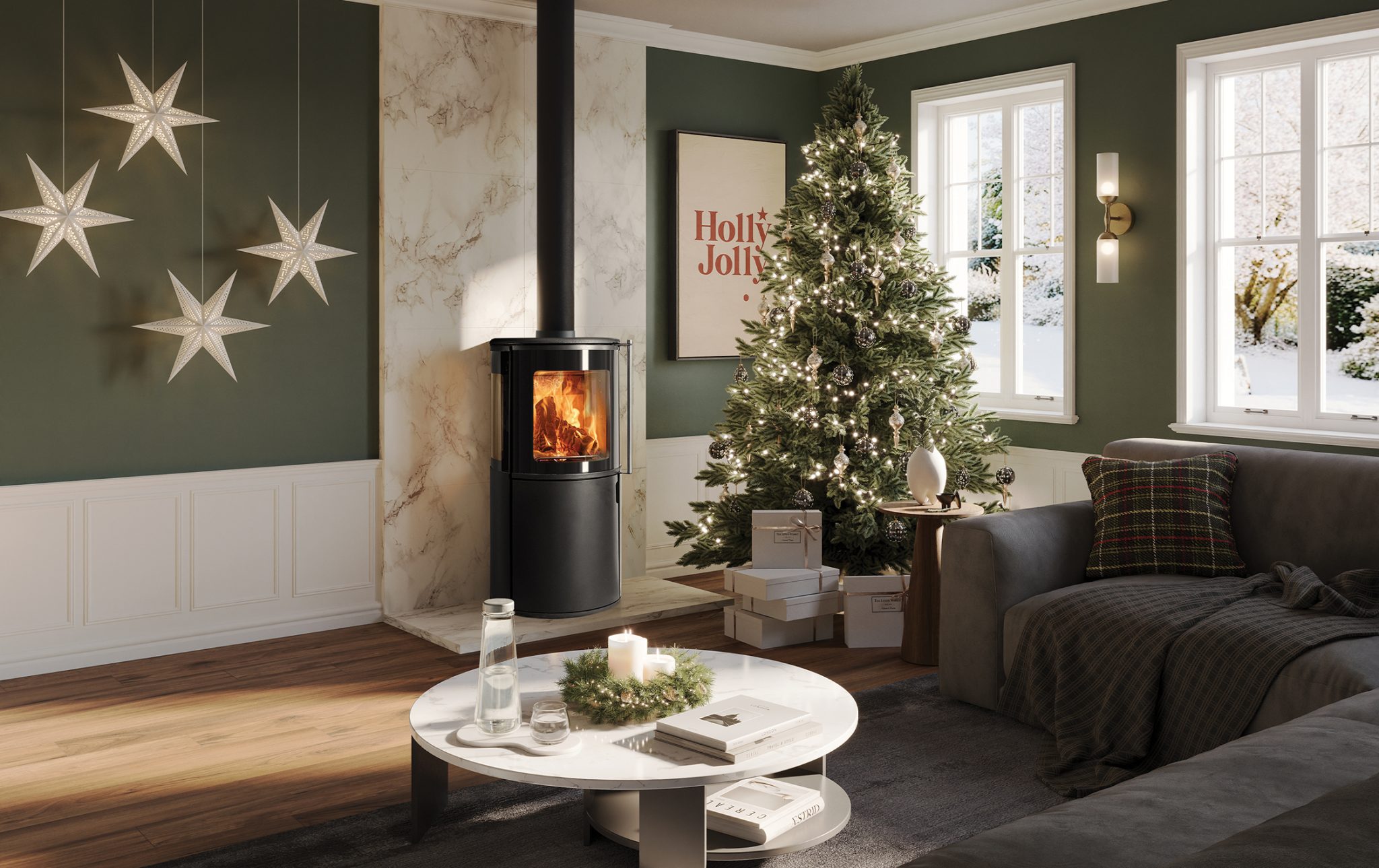

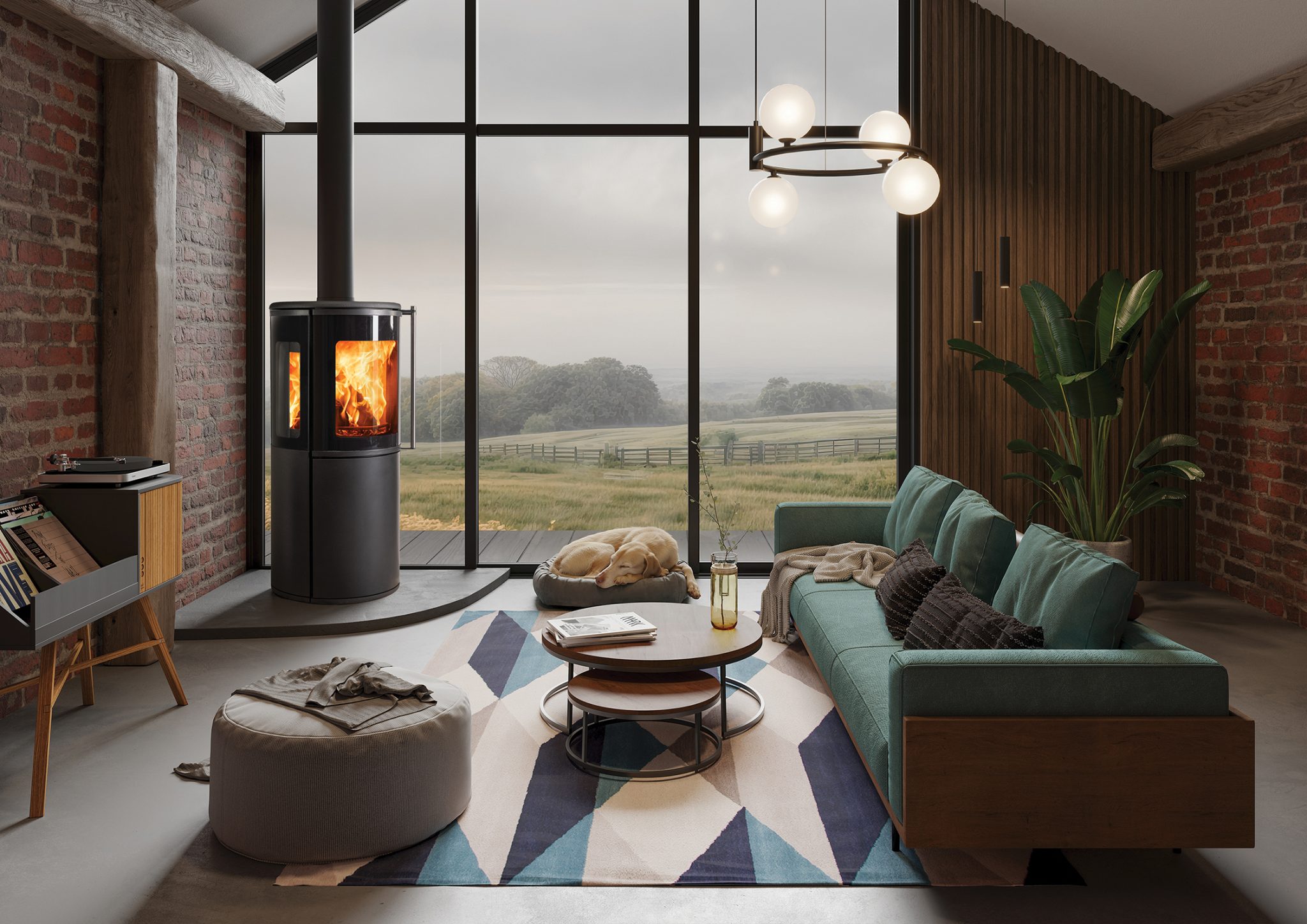

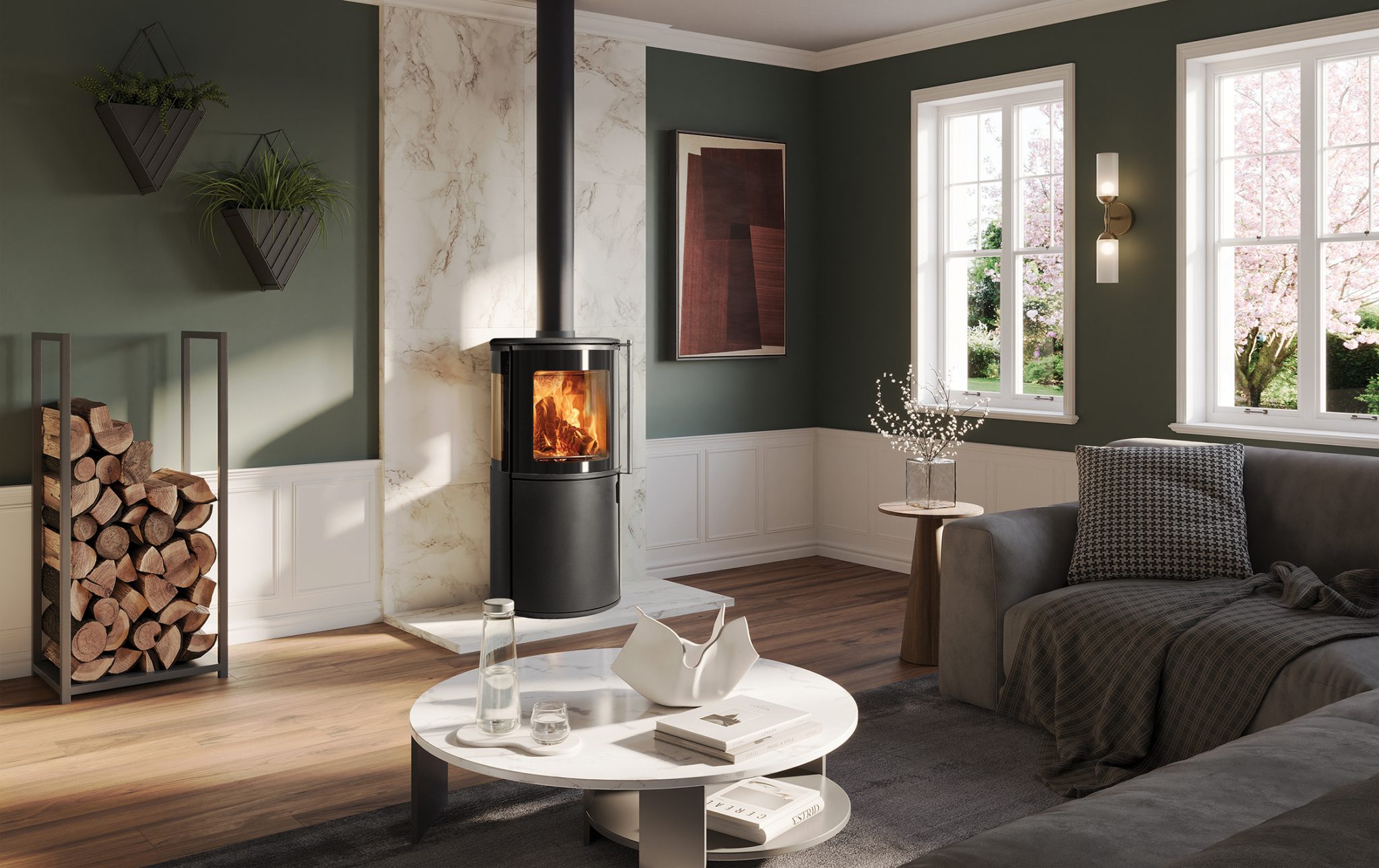

FireFX Atlas 3

The Atlas 3 is the tallest model in the range, with extended black glass detailing and an architectural appearance.

• Nominal heat output: 6.2 kW.
• Published efficiency: 82%.
• Dimensions: approximately 1,119 mm high × 510 mm wide × 450 mm deep.
• Tall side windows and extended black glass create a distinctive focal point.

Dimensions are the overall visible measurements after installation. Confirm the current technical drawings before preparing the fireplace opening.

Panoramic Flame View and Integrated Log Storage

The Atlas range is designed to make the fire a central feature of the room. The curved front viewing window gives a clear view of the flames, while Atlas 2 and Atlas 3 add side windows for a panoramic display. The Atlas 3’s extended black glass provides a particularly streamlined finish.

All three models incorporate convenient lower log storage, keeping logs close to the appliance while maintaining a clean overall design.

Efficient Wood-Burning Performance

FireFX Atlas stoves incorporate Cleanburn technology to support combustion performance and an Airwash system designed to help keep the viewing glass clearer during use. A convector heat system helps distribute warmth around the room.

Key performance features include:

• Up to 82% published efficiency, depending on model.
• A+ energy efficiency rating.
• Nominal heat output of 5 kW for Atlas 1 and 6.2 kW for Atlas 2 and Atlas 3.
• Ecodesign compliance and DEFRA exemption.
• Integrated external air connection.
• Integral heat shields.
• Compatibility with a 12 mm decorative hearth, subject to the manufacturer’s installation requirements.
• 150 mm (6-inch) top or rear flue outlet.

For best performance, burn properly seasoned or kiln-dried wood with a moisture content below 20%. Follow the manufacturer’s instructions for fuel selection, lighting, operation and maintenance.

Installation and Suitability

Choosing the right Atlas model depends on the room size, heating requirements, available fireplace space and preferred flame presentation.

Installation must account for the chimney or flue system, hearth requirements, ventilation and clearances to combustible materials. Always follow the current FireFX installation instructions and applicable Building Regulations.

The integrated external air connection may be suitable for installation designs that draw combustion air from outside the property. Confirm the proposed arrangement with your installer before preparing the opening.

Manufacturer’s Warranty

FireFX wood-burning stoves purchased from an authorised stockist within its Expert Retailer Network come with a standard two-year manufacturer warranty, extendable to five years following registration.

To activate the extended warranty, register the appliance with FireFX within one month of installation. The manufacturer’s conditions include compliant installation by a suitably trained and qualified individual and annual servicing by a suitably qualified professional. Proof of purchase, commissioning and servicing may be required for a warranty claim.

The extended warranty generally covers parts and labour during the first year and parts only from year two to year five, subject to the manufacturer’s conditions and exclusions.

Please review the current FireFX warranty terms and complete the required registration after installation.

Visit Embers Heating Studio in Derby

Visit Embers Heating Studio, your independent fireplace and stove showroom in Allenton, Derby, next to Spider Bridge on Osmaston Road.

We can help you compare the FireFX Atlas 1, Atlas 2 and Atlas 3, discuss their dimensions and flame views, and consider which model is best suited to your home.

We offer supply-only purchases and a full installation service, subject to your property’s requirements.
