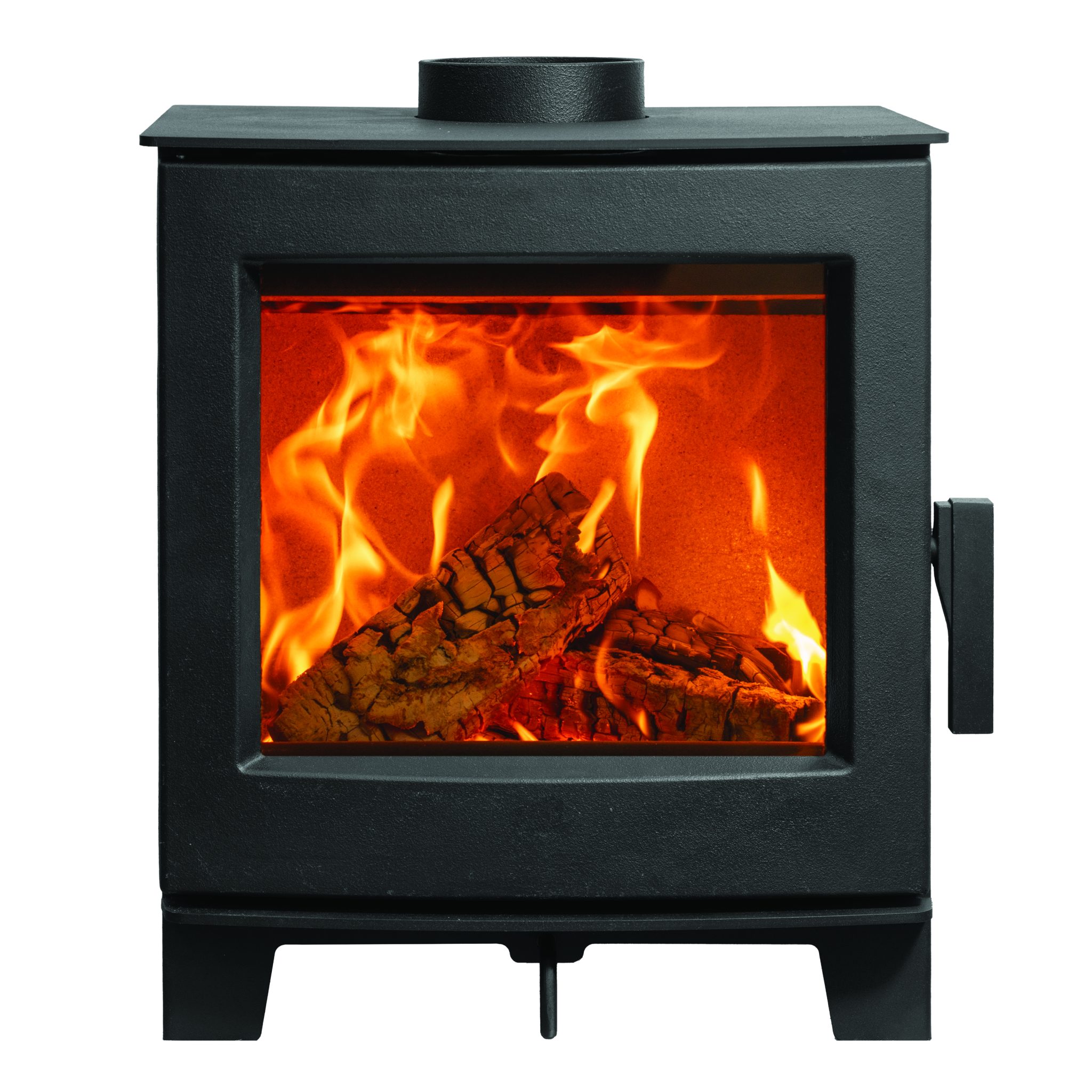

FireFX Echo 5 Wood-Burning Stove
The FireFX Echo 5 is a contemporary wood-burning stove that combines clean, minimalist styling with practical heating performance. Its large glass viewing window gives an impressive view of the flames, while the matt black finish and simple controls suit a wide range of interior styles.
Constructed from steel with cast-iron components, the Echo 5 is designed for customers looking for a modern freestanding stove with a 5 kW nominal heat output.
The FireFX Echo 5 Wood-Burning Stove offers contemporary styling, efficient heating and a clear view of the flames.
Contemporary Design and Flame View

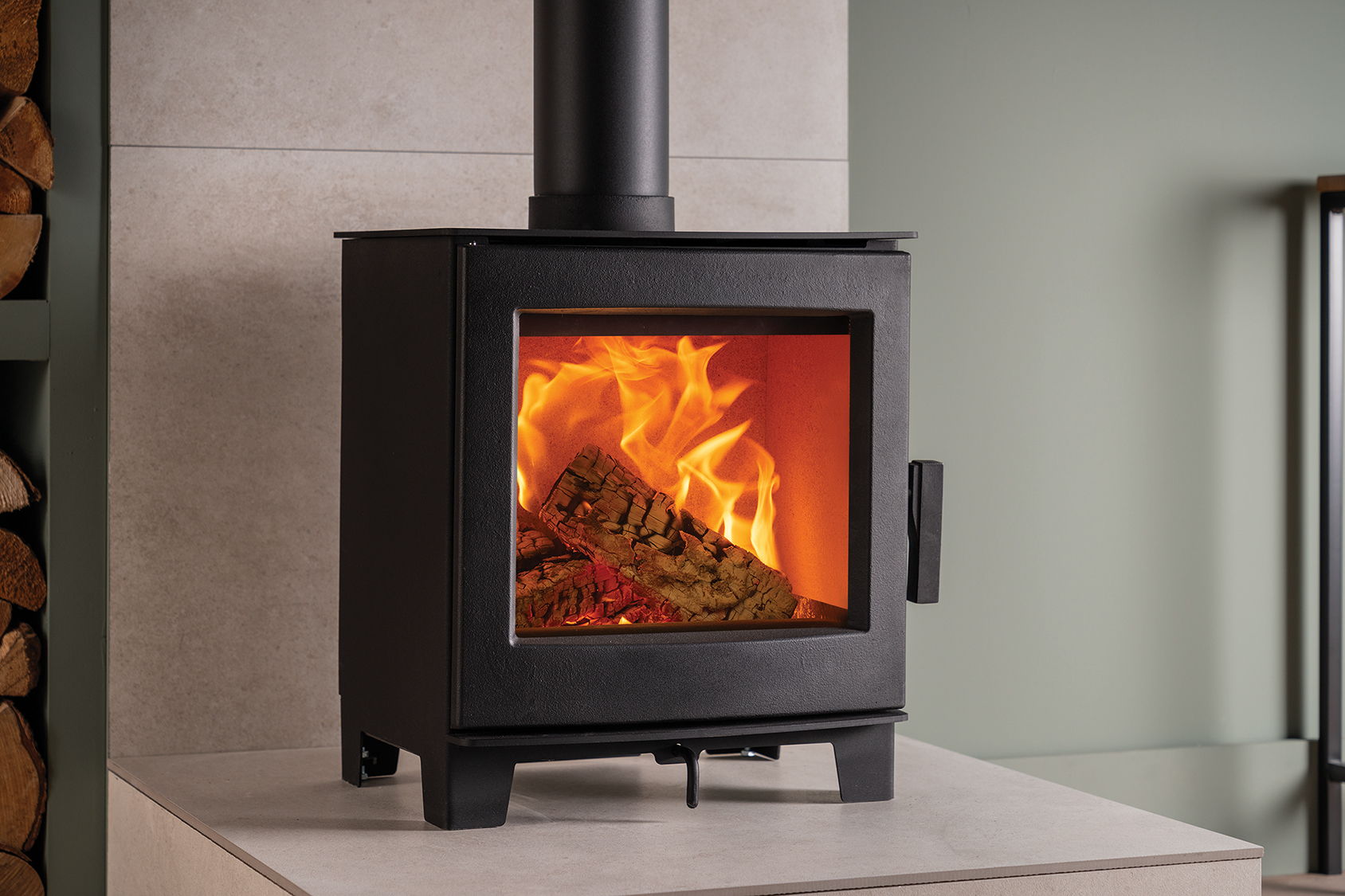

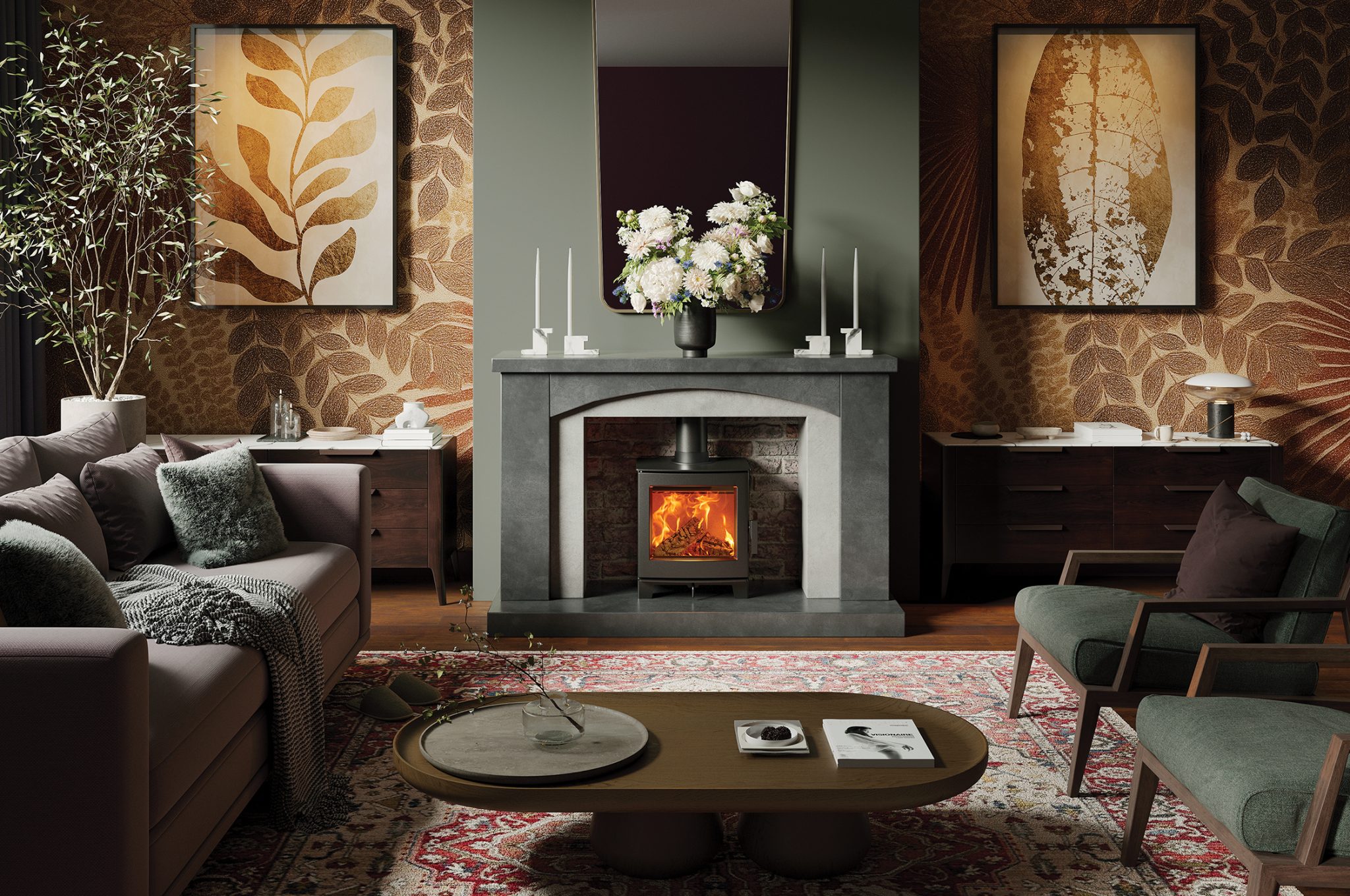

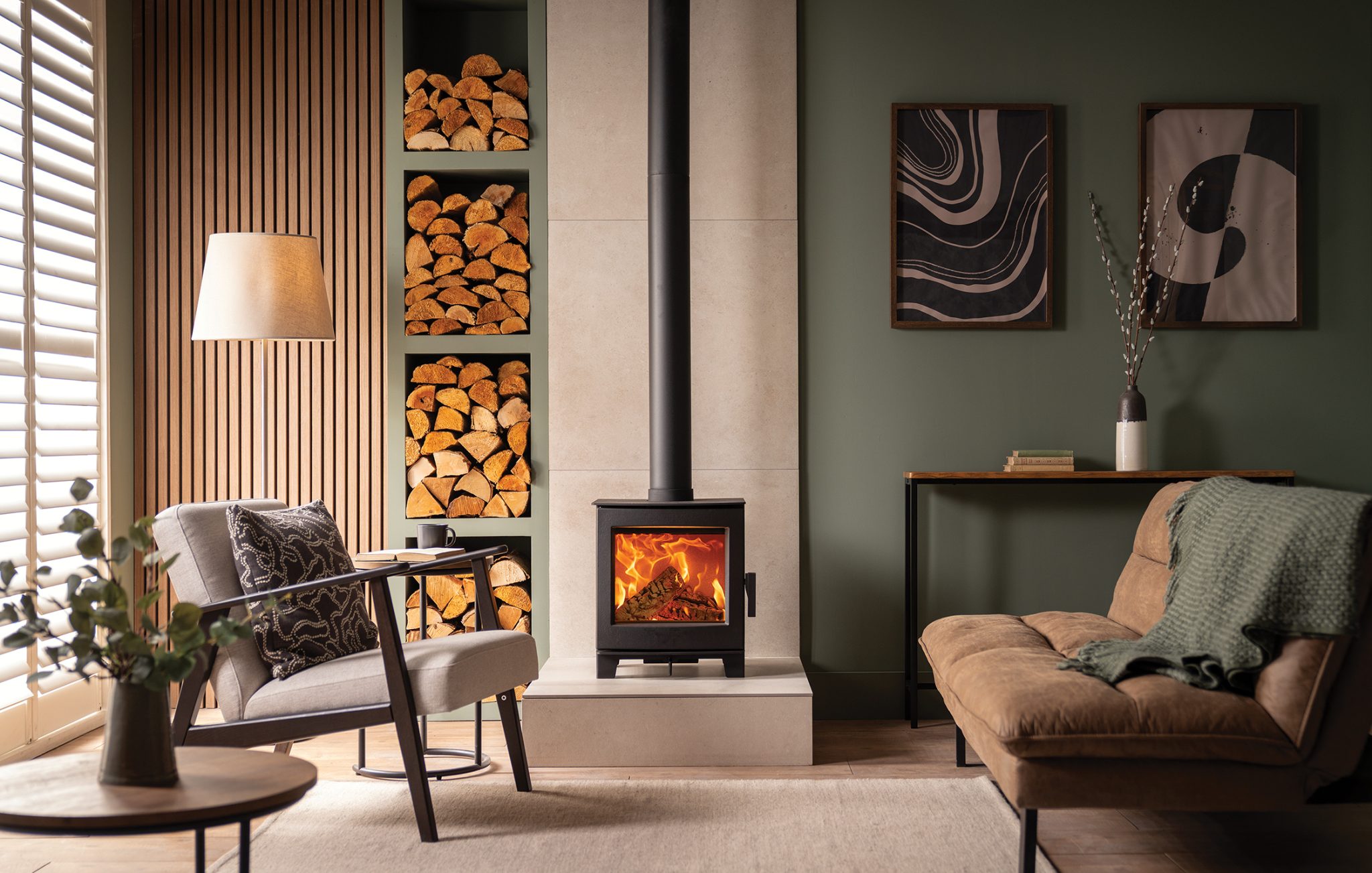

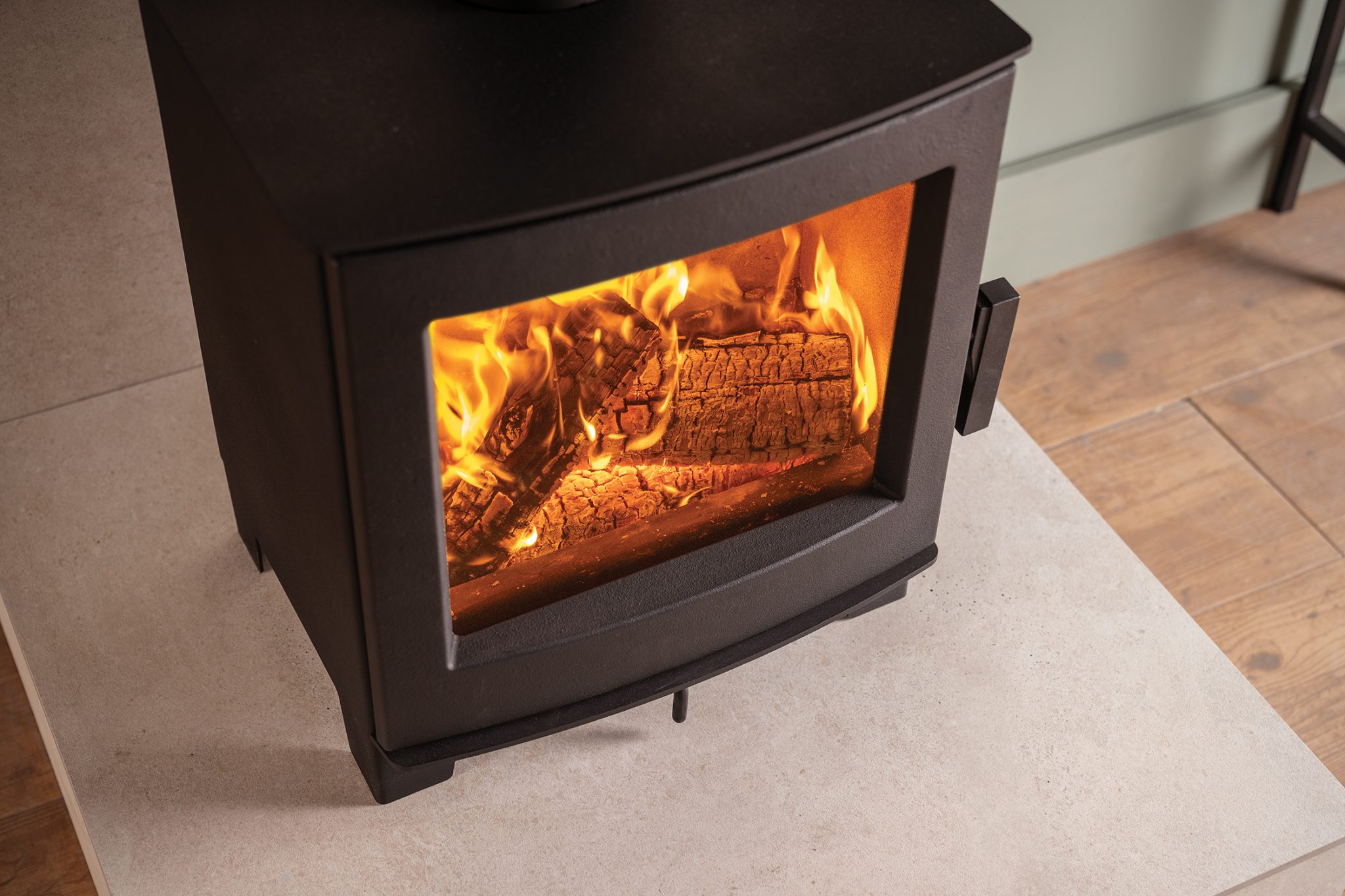

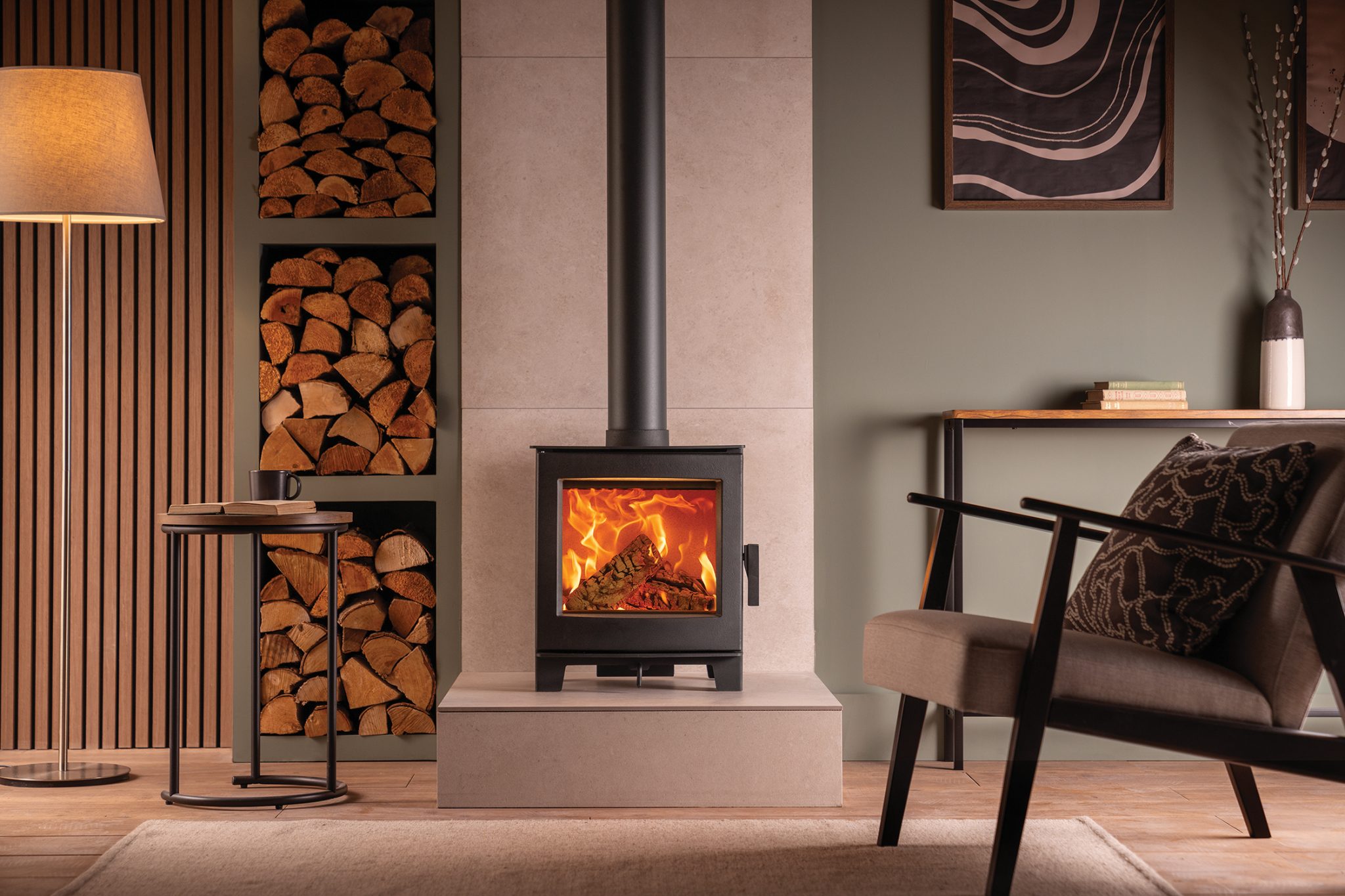

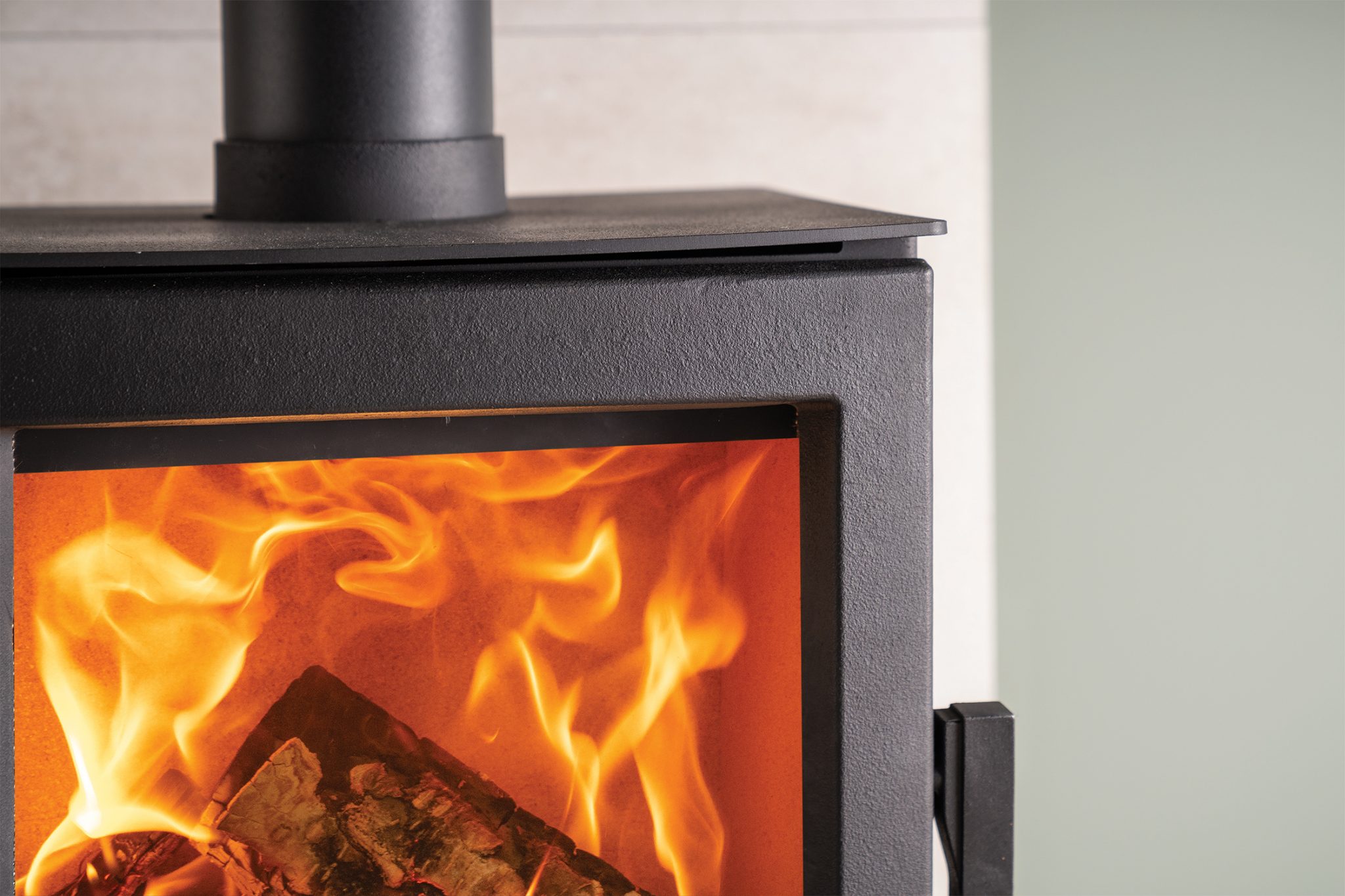

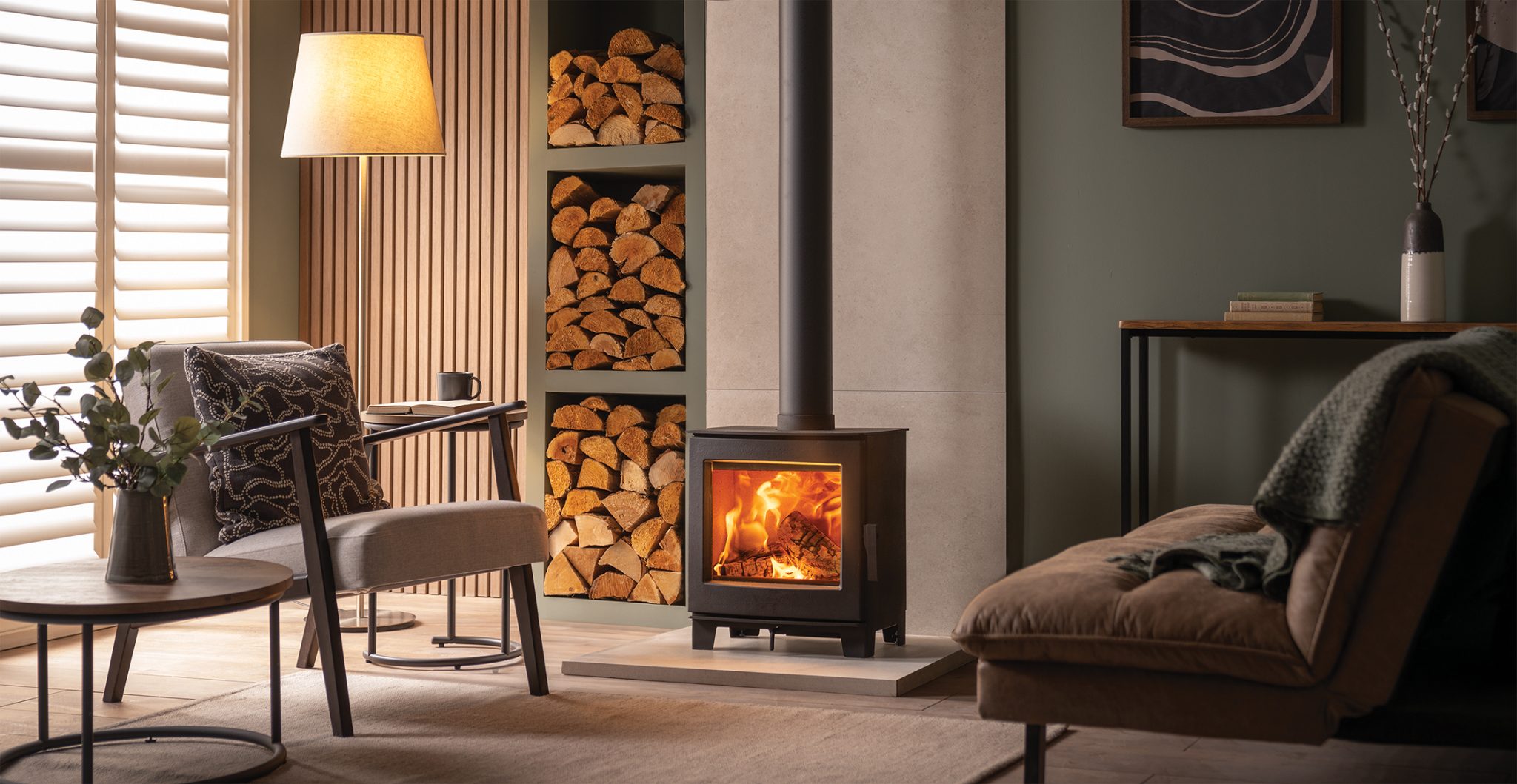

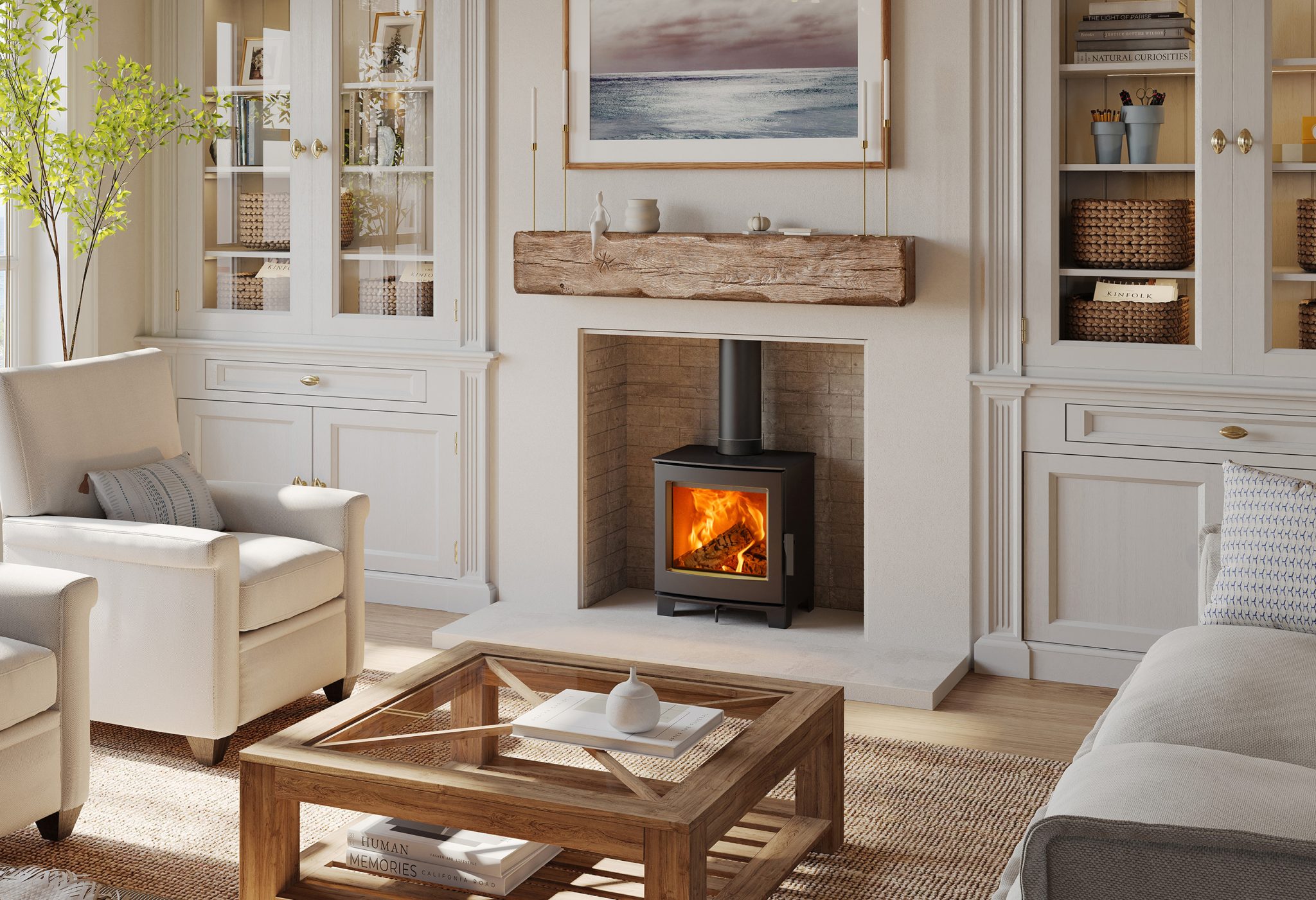

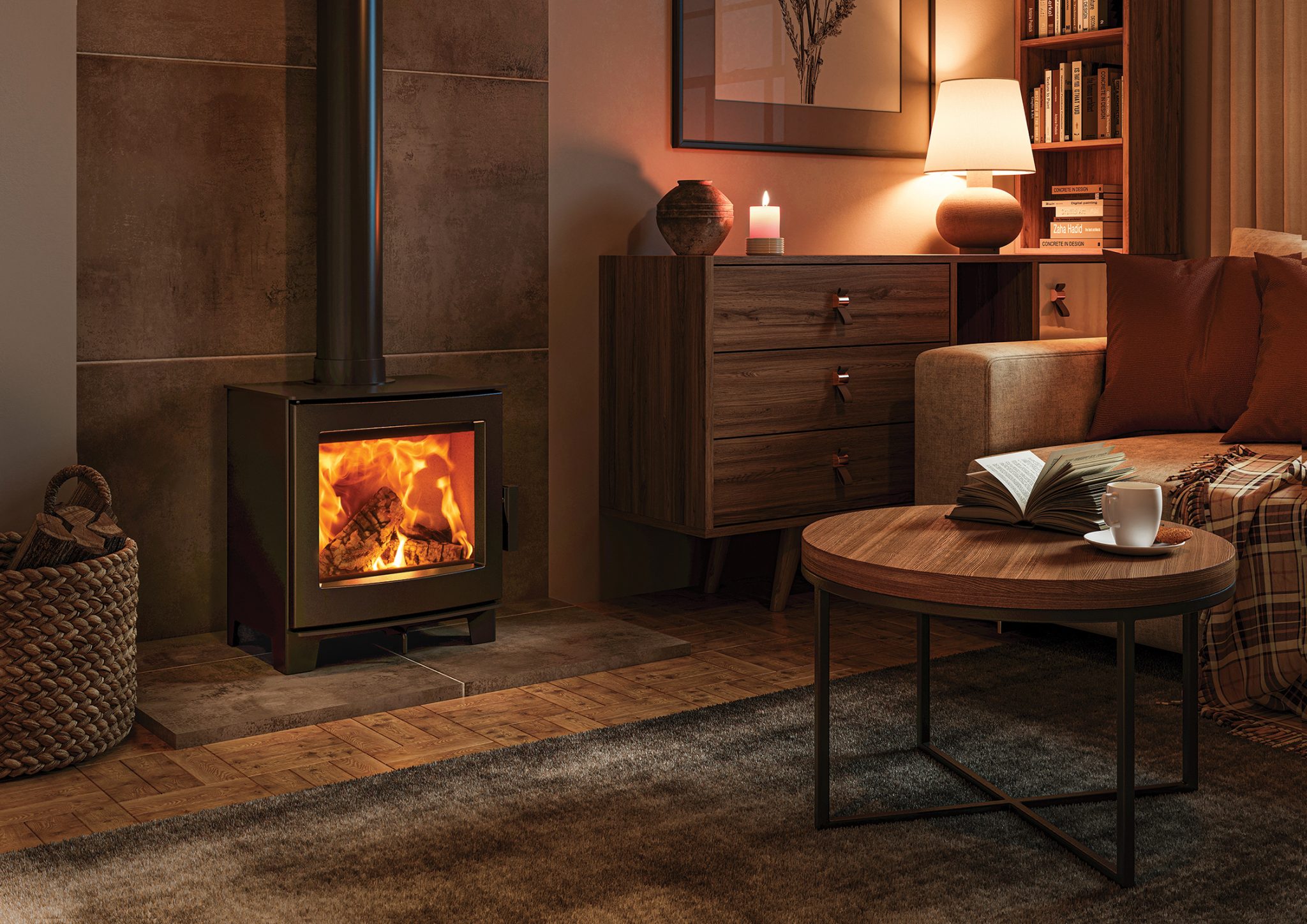

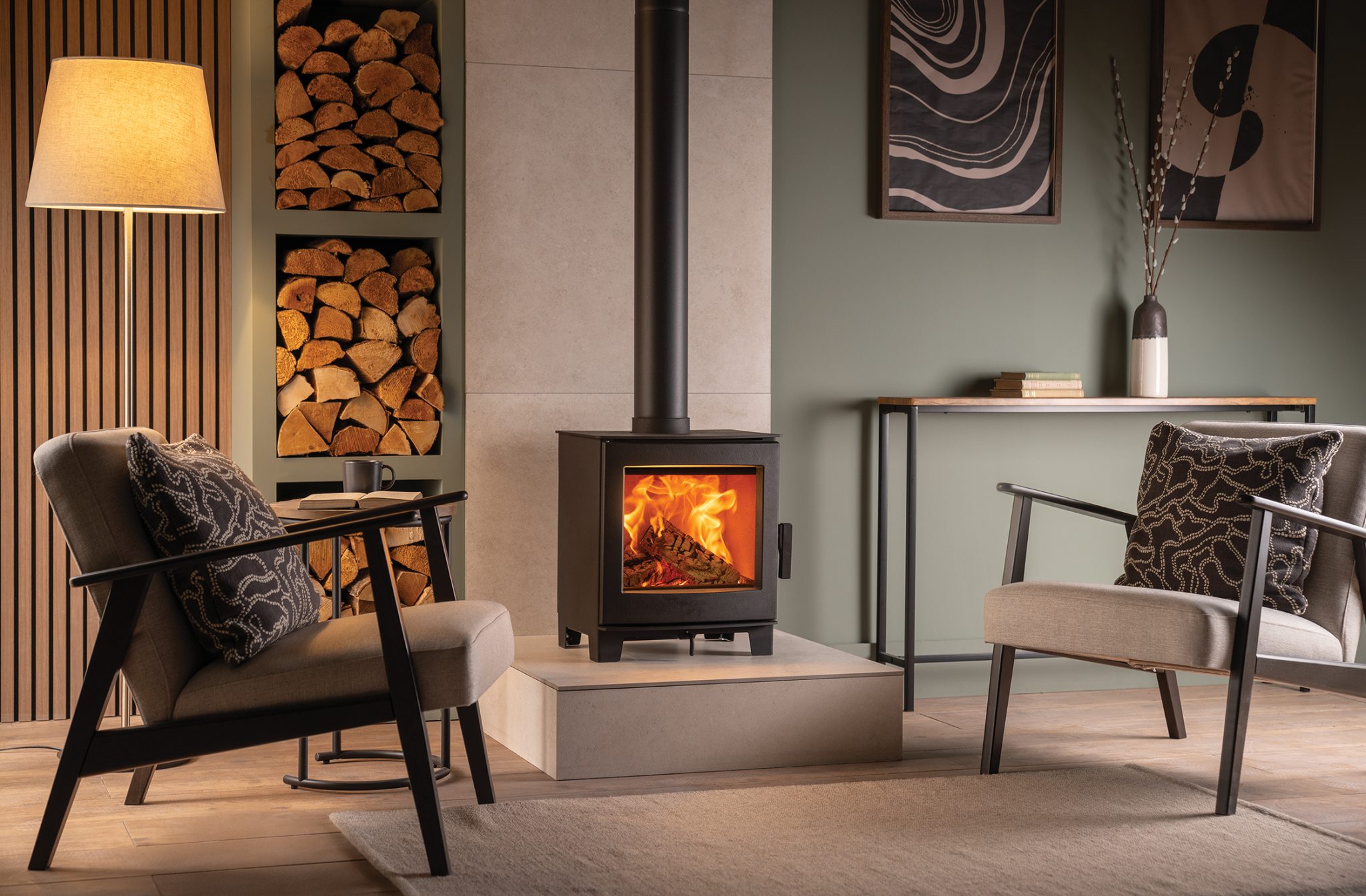

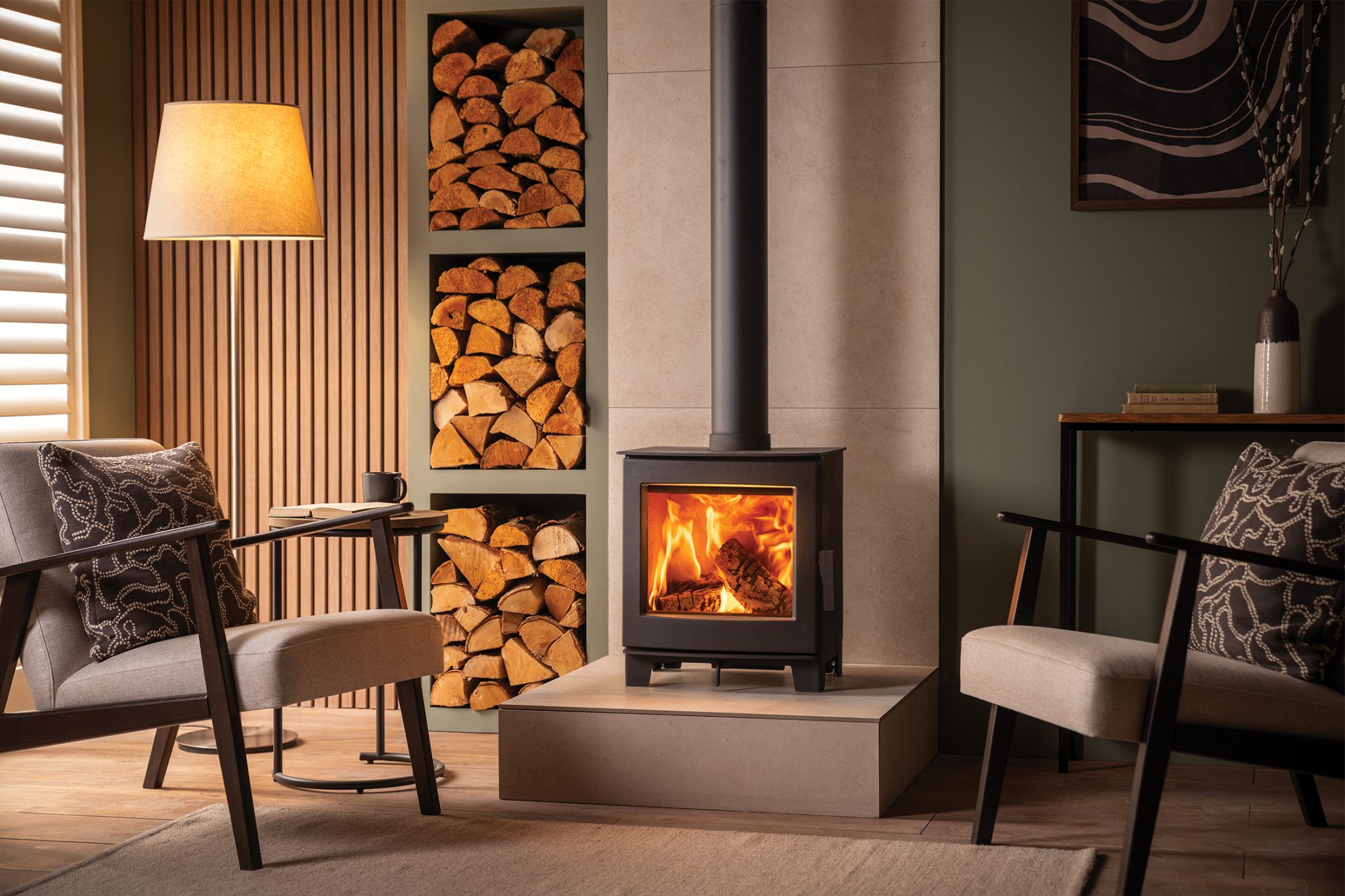

The Echo 5 features a generous front viewing window that frames the flames. Its clean lines and compact proportions make it an attractive focal point in both traditional fireplaces and contemporary living spaces.
The high-quality vermiculite lining supports combustion performance, while the simple controls make everyday operation straightforward.
Efficient Wood-Burning Performance
The Echo 5 has a nominal heat output of 5 kW, with a published heat output range of 3.5–7.5 kW. Its maximum published efficiency is up to 82.7%, and it has an A+ energy efficiency classification.
The stove incorporates Cleanburn technology and an Airwash system to support combustion performance and help keep the viewing glass clearer during use.
FireFX Echo 5 Wood-Burning Stove: Key Features
- Nominal heat output: 5 kW
- Heat output range: 3.5–7.5 kW
- Maximum published efficiency: Up to 82.7%
- Energy efficiency class: A+
- Fuel: Wood logs only
- Construction: Steel body with cast-iron components
- Flue outlet: 5-inch top or rear
- Maximum log length: 330 mm
- Hearth: Suitable for a 12 mm decorative hearth when installed in accordance with the manufacturer’s instructions
- Combustion features: Cleanburn and Airwash systems
- External air: Integrated connection
- Smoke control: DEFRA exempt for use in designated Smoke Control Areas, subject to correct installation and operation
- Ecodesign: Compliant
Always burn properly seasoned wood with a moisture content below 20%, and follow the manufacturer’s instructions for operation and maintenance.
Product Dimensions
The published dimensions are approximately:
- Width: 469 mm
- Height: 515 mm
- Depth: 396 mm
Check the manufacturer’s current technical drawing for the complete appliance and installation dimensions before preparing the fireplace opening.
Installation Considerations
The Echo 5 has a 5-inch flue outlet with top or rear connection options. It also has an integrated external air connection and a levelling system for suitable floor surfaces.
The appliance must be installed with the correct hearth, flue arrangements and clearances to combustible materials. Requirements depend on the property and installation, so confirm the details against the current FireFX installation instructions before ordering.
Warranty
FireFX publishes a five-year extended warranty for the Echo range, subject to its warranty terms and the applicable registration requirements. Please check the current conditions when purchasing.
