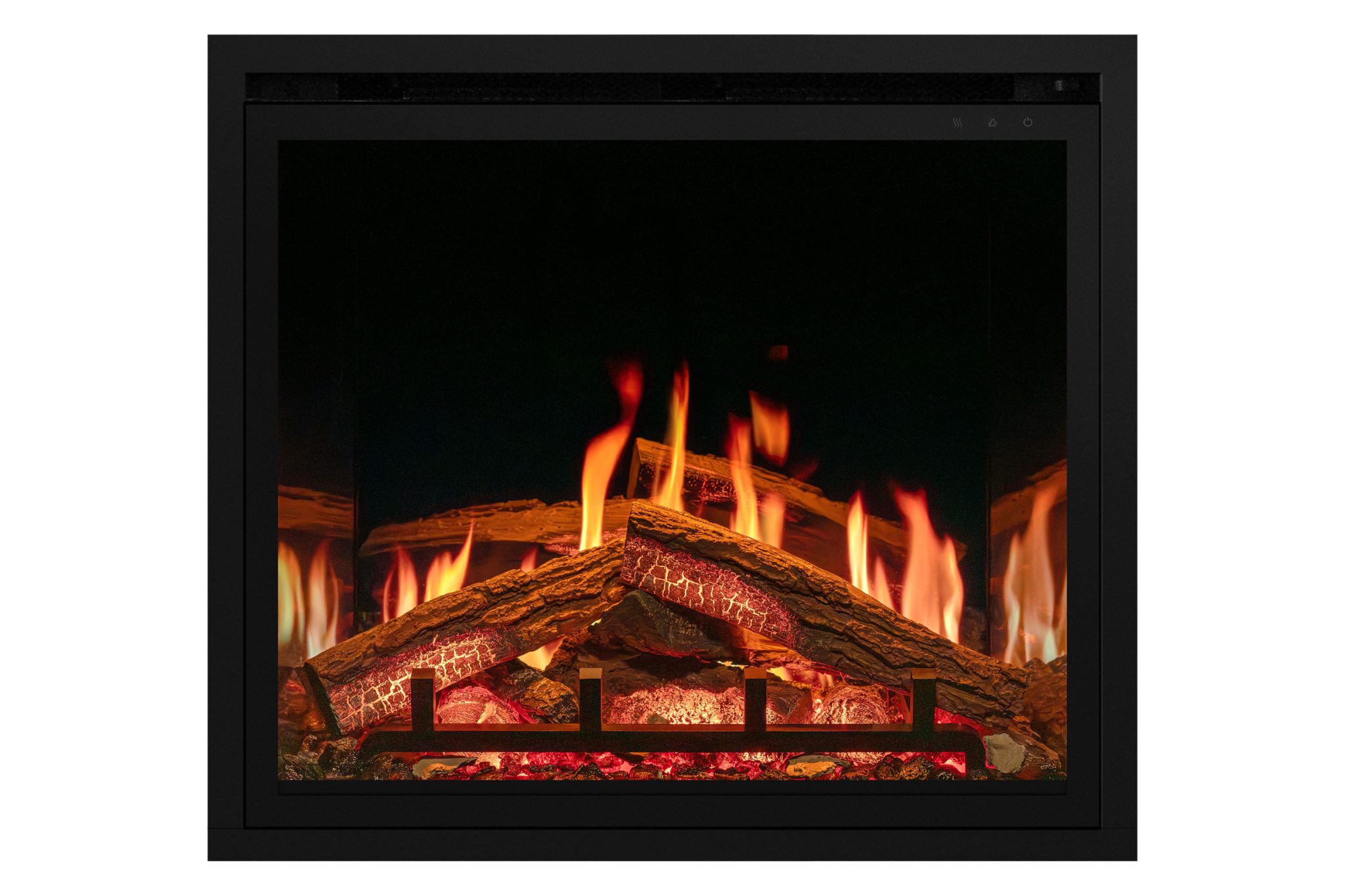

Onyx Eclipse 65HLR Electric Fire

The Onyx Eclipse 65HLR Electric Fire combines sophisticated contemporary design with immersive flame visuals and realistic IlluminOak glowing logs. Its taller landscape display creates an architectural focal point for a modern fireplace, inset installation or bespoke media wall.

Part of the Onyx Eclipse electric fire range, the 65HLR features a tapered firebox designed to simplify fitting into suitable existing fireplace openings or purpose-built wall constructions. Its integrated frame provides a clean finished appearance, with a choice of three- or four-sided frame presentation.

Stunning Flame Effects and IlluminOak Logs

The Eclipse 65HLR uses Authentic Flame Technology to create a detailed flame picture with 16 flame settings. Choose a traditional-looking amber display or explore the more contemporary effects to suit your interior.

Its IlluminOak log-effect features internal lighting designed to create the appearance of gently glowing wood. You can personalise the display using:

• 16 flame settings.
• Eight fuel-bed and log lighting colours, plus spectrum mode.
• Adjustable amber or white downlighting.
• Adjustable brightness for the visual effects.
• Nine MyFlame presets, three of which can be customised and saved through the app.
• Optional LED mood lighting for surrounding shelving or media wall features.

The flames and lighting can be enjoyed independently of the heater, allowing you to use the fire for ambience throughout the year.

Onyx Eclipse 65HLR Electric Fire: Heating and Smart Controls

The Onyx Eclipse 65HLR provides up to 2 kW of thermostatic heating. Set your preferred room temperature and use the fire’s controls to manage the heat and visual effects.

The appliance offers three convenient control methods:

• Remote control: Adjust the flame display, lighting and heater from your seat.
• Touch panel: Operate the main functions directly on the appliance.
• App control: Use a compatible mobile device to adjust settings and create heating or flame schedules.

The Eclipse also features programmable daily and weekly operation, open-window detection and Adaptive Start Control. A separate fan-only mode provides gentle air circulation when you want airflow without the heat.

Designed for Inset Fireplaces and Media Walls

The Eclipse 65HLR has a tapered firebox designed for suitable existing chimney openings or bespoke wall constructions. Its integrated frame can be configured with a three- or four-sided finish by following the manufacturer’s installation instructions.

The optional mood lighting system can extend the ambient lighting around shelving or a television. This accessory is separate from the fire itself and should be specified according to the intended installation.

Before preparing the opening, confirm the full recess dimensions, electrical requirements, clearances, access requirements and frame configuration against the current Onyx installation instructions. The visible measurements alone are not sufficient to determine whether an existing fireplace opening is suitable.

Key Features and Specifications

• Manufacturer: Onyx.
• Model: Eclipse 65HLR.
• Appliance type: Inset electric fire.
• Maximum heat output: Up to 2 kW.
• Flame technology: Authentic Flame Technology with 16 flame settings.
• Fuel effect: IlluminOak illuminated log-effect.
• Fuel-bed and log lighting: Eight colours plus spectrum mode.
• Downlighting: Adjustable amber or white.
• Controls: Thermostatic remote, touch panel and compatible app.
• Heating options: Thermostatic heat, flame effects without heat and fan-only mode.
• Frame finish: Three- or four-sided presentation.
• Drawing dimensions: Approximately 687 mm wide × 646 mm high × 272 mm deep.
• Visible opening: Approximately 627 mm wide × 571 mm high.
• Optional accessory: LED mood lighting system.

Use the manufacturer’s current technical drawing for the exact appliance and recess dimensions. Confirm suitability before preparing or altering a fireplace opening.

Onyx Eclipse 65HLR Manufacturer’s Warranty

The Onyx Eclipse 65HLR Electric Fire is eligible for an extended five-year manufacturer warranty when purchased under Onyx’s current terms through an authorised stockist within its Expert Retailer Network.

Register the appliance with Onyx within one month of the installation date to qualify. Under the current terms, the first two years provide parts and labour cover for eligible manufacturing defects, followed by parts-only cover from year two to year five. Consumable components have separate coverage limits.

The extended warranty is subject to eligibility, registration, compliant installation, maintenance requirements and the manufacturer’s exclusions. Please review the current warranty terms and complete registration after installation.
